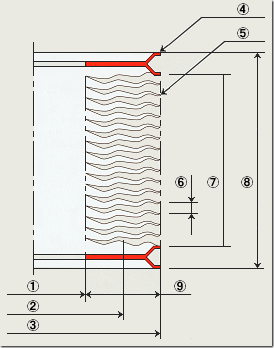

 1. Inside diameter (I.D) |
 |
| 2. Effective diameter = (O.D + I.D) / 2 |
|
| 3. Outside diameter (O.D) |
|
| 4. Type-E fitting (other types available) |
|
| 5. Convolution |
|
| 6. Pitch |
|
| 7. Free length |
|
| 8. Total length |
|
| 9. Span = (O.D - I.D) / 2 |
|
| * Effective area = (O.D2 + I .D2) * pi / 800 |
