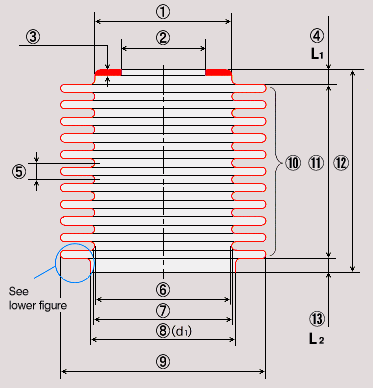

Bellows design parameters are shown below:
Bellows design parameters are shown below:
 1. Bottom diameter |
 |
| 2. Hole diameter |
|
| 3. Bottom wall thickness |
|
| 4. End length L1 |
|
| 5. Pitch |
|
| 6. Inside diameter |
|
| 7. Root diameter |
|
| 8. Outside diameter of end |
|
| 9. Outside diameter |
|
| 10. Number of convolutions |
|
| 11. Free length |
|
| 12. Total length |
|
| 13. End length L2 |
|
|
 Multiplied bellows are producible by putting a number of tubes together as shown in the figure. This type of bellwos is effective in improving the characteristics. |
 |
